- 5.2" 1920 x 1080 Touchscreen Display
- 4K30 HDMI Input/1080p60 HDMI Output
- 3D LUT Output, UI Output, DCI-P3 Color
- 600 cd/m² Bright/1500:1 Contrast Ratio
- Vertical Output with Stretch Feature
- Anamorphic Output, Brightness, Tint
- DC Input, USB-A Output Port
- Customized Peaking & Cropping
- Sunshade & Tilting Shoe Bracket
- L-Series & LP-E6 Battery Support

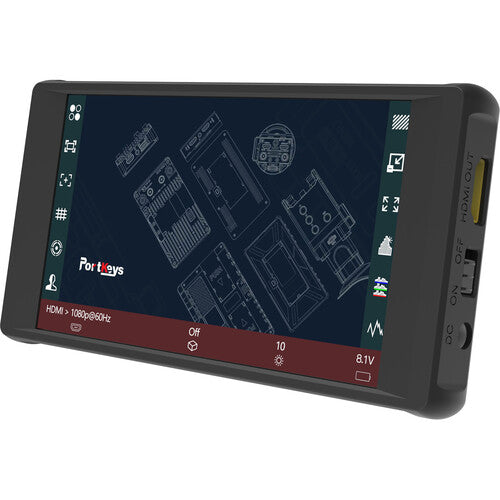

This compact, 5.2" touchscreen monitor supports the DCI-P3 wide color gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.
3D LUT Output
Provides the ability to output 3D LUTs for customized, nuanced monitoring.
Vertical Stretch
Real-time image stretching for vertical-mode capture.
Up to 4K HDMI Input
Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.
Wide Color Gamut
Covers 100% of the DCI-P3 wide color gamut, producing detailed, refined images.
Anamorphic HDMI Output
- Calibrates anamorphic lenses, outputs via HDMI.
- Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range.
Touchscreen

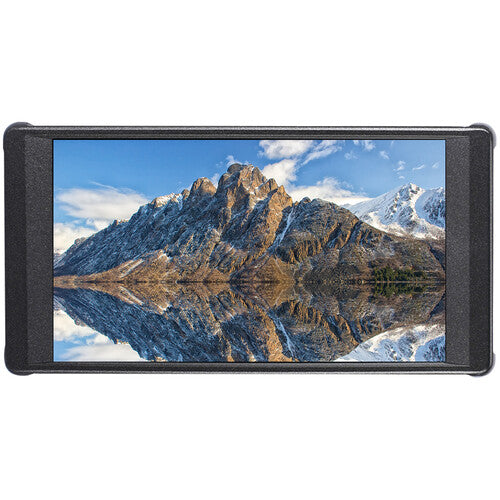

Bright, compact, 5.2" touchscreen for on-camera monitoring.
Imaging Tools
- 3D LUTs, anamorphic calibration
- Vertical extension for portrait mode
- Exposure: RGB and luma waveforms
- Luma histogram, zebra
- ARRI false color, false color
- Focus: Zoom functions, customized peaking
- Cropping: Customized cropping for viewing image details
- Framing: Check field, grids, image flip, and crosshair marks
- Display: Anamorphic, color temperature, contrast, and sharpness
- Display: Brightness, tint, backlight, and underscan
- Battery: Remaining power
- Audio: Metering
