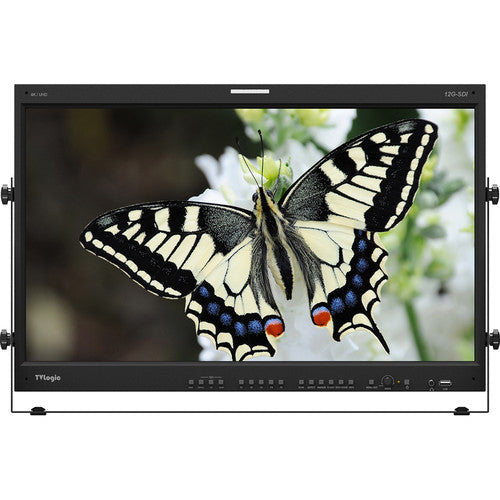

TV Logic LUM-240G (LUM240G) 24 inch UHD LCD Single Link 4K Monitor with 12G-SDI Interface
Overview
The LUM-240G 24" UHD 4K 12G-SDI Single-Link IPS LCD Monitor from TVLogic supports various video formats including 12G/3G/HD-SDI and HDMI 2.0. It also provides a wide color gamut up to DCI and includes 3D LUT support and various professional features. It provides a wide viewing angle of 178°, contrast ratio of 1000:1, and maximum brightness of 350 cd/m².
- 23.8" display with UHD 4K (3840 x 2160) native resolution
- 3D lookup table (LUT) for accurate color reproduction
- TVLogic color calibration utility
- Color gamut covers up to DCI-P3
- 10-bit 1.07B color depth and TVLogic color calibration utility
- True 24p (48 Hz) driving for digital cinema
- UHD 4K interface
- 12G-SDI, 6G-SDI, and HDMI 2.0 single-link interfaces support 4K signals up to 2160p60
- 3G-SDI quad link with quad and two-sample interleave modes
- Single-mode (via HDMI 2.0 port) supports HD signals up to 1080p60 and 1080i60, displaying one Full HD quadrant to fill the screen (zoom)
- Wide viewing angles of 178°
- 1:1 pixel mapping modes for SD/HD/FHD
- Timecode display, focus assist, audio level meter, internal pattern, blue only, H/V delay, marker, mono
- HDMI 2.0 support for 4K/60p
- Built-in mono speaker
- Matte finish panel
Features
TV Logic LUM-240G (LUM240G) 24 inch UHD LCD Single Link 4K Monitor with 12G-SDI Interface. The LUM-240G is a 24’‘ 4K(3840×2160) monitor with 12G-SDI interface - 2×3G-SDI & 2×12G-SDI. The LUM-240G supports various video formats including 12G/ 3G/ HD-SDI and HDMI 2.0. The LUM-240G provides wide color gamut up to DCI and includes 3D LUT support and a full feature set.
The LUM series offers four monitors with UHD/4K resolution, precise colour reproduction, and wide colour gamut. TVLogic introduced one of the 1st generation 4K monitors, the LUM-560W in 2010.
The LUM series offers four monitors with UHD/4K resolution, precise colour reproduction, and wide colour gamut. TVLogic introduced one of the 1st generation 4K monitors, the LUM-560W in 2010.
SUMMARY
Aspect Ratio: 17:9
Inputs: HDMI, SDI
Monitor Location: Studio
Outputs: SDI
Panel Type: LCD
Resolution: 3840 x 2160
Screen Size: 24 Inch
Video Resolution: 4K
INCLUDED IN BOX
- 1x LUM-240G Monitor
- 1x AC Power Cord
- 1x Stand
Specifications
| Application | UHD 4K monitoring and field production |
| LCD Size | 23.8" / 60.5 cm |
| Video System | Not specified by the manufacturer |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.13725 mm |
| Color Depth | 1.07B (10-bit) |
| Viewing Angle (H x V) | 178˚ / 178˚ |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Display Area | 527.04 x 296.46 mm |

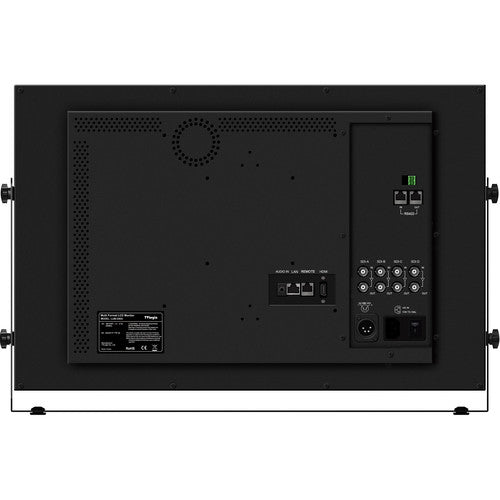

| Input and Output Connectors | Inputs: 4 x BNC (12G-SDI A/B channel input, 3G-SDI C/D channel input) 1 x HDMI 2.0 1 x Analog stereo Output: 4 x BNC (12G-SDI A/B, 3G-SDI C/D channel, active throughout) 1 x Analog stereo (phone jack) |
| Speaker | Yes, mono |
| Picture Controls | Timecode display Focus assist Audio level meter Internal pattern Blue only H/V delay Marker |
| Remote Control | No |
| Front Panel | HDMI Single 2SI Quad Function (F1 to F5) Scan Aspect Marker Back light Video range Information Menu / Exit Enter Power on/off |
| Input Signal | 12G-SDI: 12 Gb/s 6G-SDI: 6 Gb/s (2160p30) 3G-SDI: 2.97 Gb/s HD-SDI: 1.485 Gb/s HDMI: 2160p / 1080p / 720p / 480p |
| SDI Input Signal Formats | SMPTE-425M-A/B: 1080p 50/59.94/60 SMPTE-274M: 1080p 23.98/24/25/29.97/30 1080PsF 23.98/24/25/29.97/30 SMPTE-296M: 720p 50/59.94/60 SMPTE ST 2036-1:2009: 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60 SMPTE ST 2048-2:2011: 2048 x 1080p 23,98/24/25/29.97/30/47.95/48/50/59.94/60 2048 x 1080PsF 23,98/24/25/29.97/30 SMPTE ST 2081: 3840 x 2160p 24/25/30 SMPTE ST 2082: 3840 x 2160p 24/25/30/50/60 |
| Power Requirements | 24 VDC / 100 to 240 VAC (50 to 60 Hz) |
| Power Consumption | 115 W (maximum) |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 21.7 x 14.2 x 3.8" / 552 x 360 x 96 mm (without stand) 23.1 x 15.3 x 5.9" / 586 x 388 x 150 mm (with stand) |
| Weight | 22.7 lb / 10.3 kg |
| Packaging Info | |
|---|---|
| Package Weight | 31.6 lb |
| Box Dimensions (LxWxH) | 26.5 x 21.0 x 11.25" |
