- 8" HDMI & 3G-SDI 1920 x 1200 Monitor
- Supports up to DCI 4K24 Input
- 1100 cd/m² Bright, 1000:1 Contrast Ratio
- 10-Bit Color, 3D LUT Out on HDMI & SDI
- 4K HDMI/3G-SDI Input & Loop-Out
- HDMI to SDI & SDI to HDMI Conversion
- Heat-Dissipating Aluminum Housing
- Peaking, Histogram, Waveform, Zebra
- Mount for Select Video Transmitters
- Dual L-Series Battery Plates & DC Port
Portkeys HS8 features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

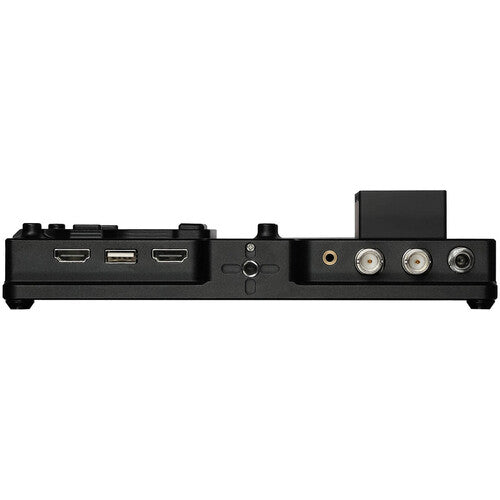

HDMI and 3G-SDI Input/Output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs
3D LUT Support
3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs

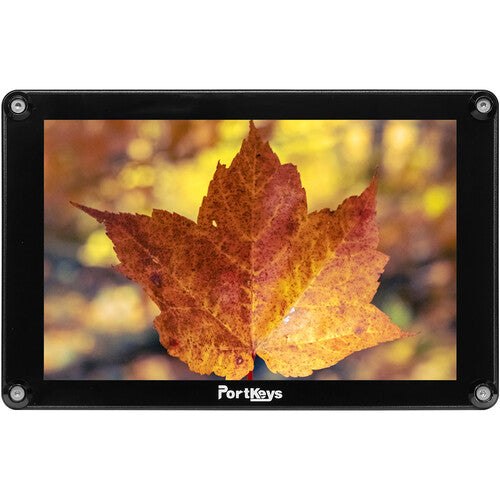

Hi-Bright Monitor
8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio

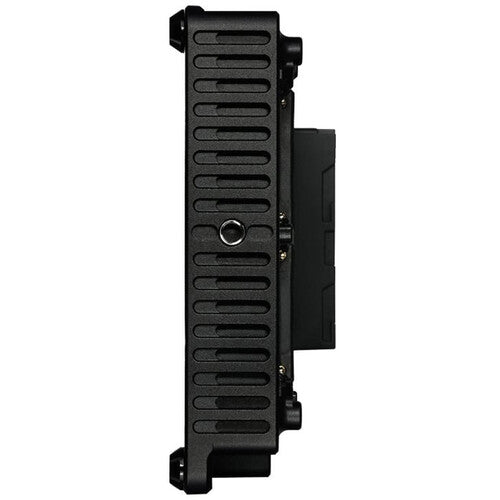

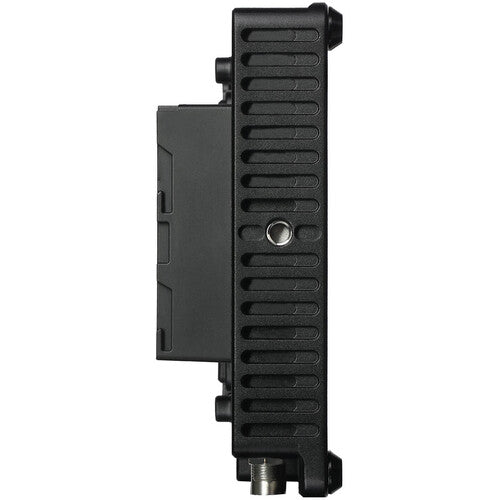

Durable Housing
- Rugged, heat-dissipating CNC-machined aluminum alloy housing
- Top and bottom 1/4"-20 thread mounts

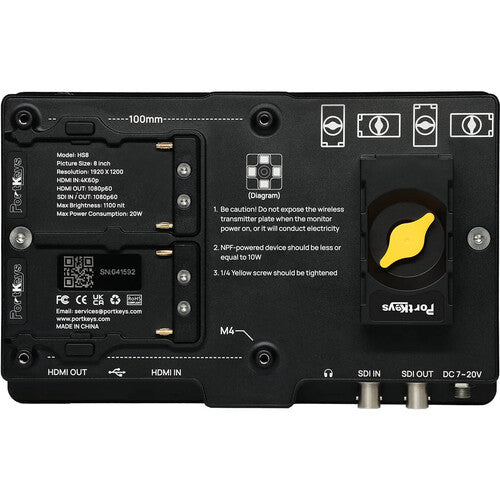

Hot-Swappable Battery Plates
- Hot-swappable, dual Sony L-series-type battery plates
- DC input port for power supply
Optional Wireless Video Transmitter
Comes with a detachable cover for the wireless video transmitter mount
