SHAPE Sony FX6 Camera Bundle Rig Kit (FX6KIT) is a comprehensive range of accessories to enhance your Sony FX6 camera rig, including a versatile Top Handle Controller, precise Push-Button Viewfinder Mount, adaptable Follow Focus Pro, versatile Matte Box Swing-Away, comfortable Double Quick Handle Arri Rosette Single, and versatile VCT Universal Baseplate BP10, all designed to improve performance and cater to diverse filming needs.

Features:

Sony FX6 baseplate and top plate with handle (FX6BT)

FX6 top plate, baseplate and left Arri rosette handle with Push-Button technology
Baseplate with Arri rosette, shoulder mount and 15 mm rod system
Front to Back sliding plate for weight distribution
Matches your camera’s optical center
shoulder pad made of slip-free material
Protective rubber pads to protect your camera
Front and rear 15 mm rod bloc system with safety ratchet knob
Come with 2 pairs of 15 mm rods (8”, 4”)
Sophisticated tool box to store your extra screws and Allen key
Quick release adapter plate for VCT tripod plate mount

Follow Focus Pro (FFPRO)

Sony FX6 viewfinder mount with 15 mm lightweight system rod bloc
Designed with 15 mm SHAPE Patented Push-Button technology
2 Points of Articulation for horizontal and vertical adjustments
Designed with monitor mount adapter for the Sony FX6 LCD screen monitor
Must be combined with the SHAPE FX6 top plate (FX6TP)
Can be mounted on one side only with the SHAPE rod clamp 15 mm (15CTH)
Perfect for drone and gimbal applications
Made of CNC aluminium

Matte box 4×4 (MATT44)

Lets you perform quick lens changes without having to remove the matte box from your rods
Main frame made of carbon fiber
Swing-Away Support Arm
Height Adjustable
Fits Lenses up to 105 mm
Compatible with 15 mm Rods
360° Rotatable Filter Stages
Top and Side Flags Included
Side Flags Feature Safety Hook Design
2x Rotating 4×4″ Filter Trays
6x stepdown rings (65, 77, 85, 88, 100, 105 mm)
1x Knickers

Sony FX6 Push-Button view finder mount (FX6VF)

The Push-Button Viewfinder Mount for Sony FX6 is designed with a 15 mm rod and 2 Push-Button for horizontal, vertical, and transversal adjustments. By simply pressing the SHAPE patented push-button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then it’s locked. Also, the rod clamp with ratchet knob allows you to slide the bracket for a perfect viewfinder distance adjustments

Follow Focus Pro (FFPRO)

Manufactured in sleek black aluminium anodized, this special edition professional follow focus unit combines sleek look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. SHAPE engineering is internationally renowned and there is one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15 mm rods, allowing for quick attachment, removal, and repositioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth – depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks. While the Follow Focus Pro contains the essentials for pulling focus on any type of project production, the choice of either 15 mm rod adaptors means that you can SHAPE the system to meet your particular requirements.

Matte box 4×4 (MATT44)

The SHAPE 2-Stage 4 x 4″ Matte Box accepts lenses with up to a 105 mm front outside diameter. The main frame made of carbon fibre. It mounts to 15 mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens centre to rod centre height is slightly off from the standard. Two rotating filter stages support the use of 4×4″ filters. The matte box comes with a top flag (eyebrow), side flags, six matte box donuts in 65, 77, 85, 88, 100 and 105 mm sizes, and (1) elastic donut. The matte box also has a rear opening of 100 mm for lenses.

The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 65, 77, 85, 88, 100, 105 mm. The included elastic donut supports lenses with a front outside diameter between 65 and 105 mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom. The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lockdown thumbscrew loosen accidentally. The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65″ vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85 mm distance from LWS rod centre to lens port centre.

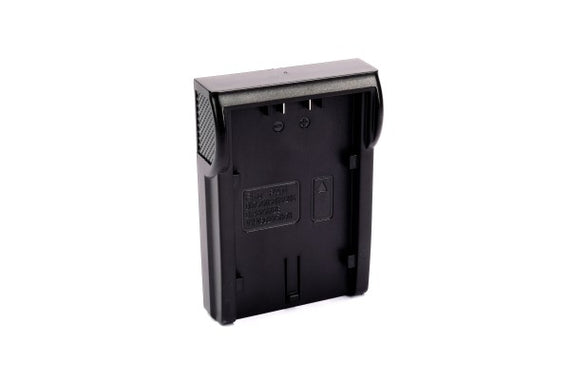

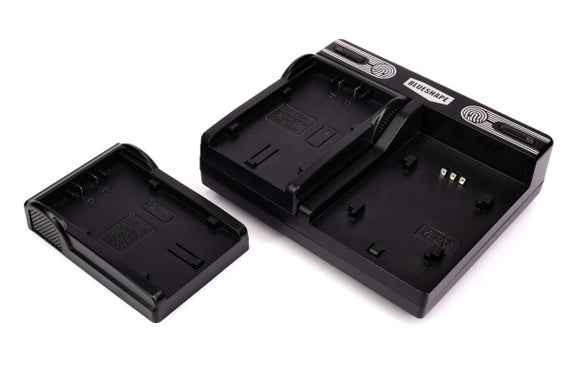

Blueshape Charger Adapter
