Sigma 50-100mm T2 High Speed Zoom Cine Lens - Feet Scale

Product type: Cine Zoom Lens

Vendor: Sigma

Availability:

Price without VAT:

Including VAT €4.526

Add to the wishlist

Overview

    The Sigma 50-100mm T2 Cine High-Speed Zoom Lens (Feet) with provides an image circle that covers Super 35mm-sized sensors. It features a maximum T-stop of 2, and the aperture does not ramp over the zoom range. It shares common lens gear positions with the other lens in the Sigma High Speed Zoom lineup, which makes for rapid lens changes.

    The 9-bladed iris provides round out of focus highlights for a natural-looking bokeh. The lens barrel features 180° of rotation from close focus to infinity, and the zoom barrel rotates 160°, and the clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears and the focus scale is marked in feet. The front of the lens is 95mm in diameter with a removable 1/4"-20 support foot that helps support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included).

    Color Balance
    All the lenses in the lineup are designed to comply with SIGMA's CCI standard simplifying when intercutting between lenses.
    Dust-Proof and Splash-Proof Design
    Sharing the same dust-proof and splash-proof construction as the SIGMA 150-600mm F5-6.3 DG OS HSM｜Sports, each ring and mount is sealed to prevent water and dust from entering.
    All Metal Body Construction
    The lens body is made completely of metal to stand up to the rigors of the production day.
    Lens Markings
    The main lens markings are in luminous paint for easy visibility in low light situations. The intermediate markings are laser-engraved for durability. The focus and zoom markings are readable from either side of the lens.

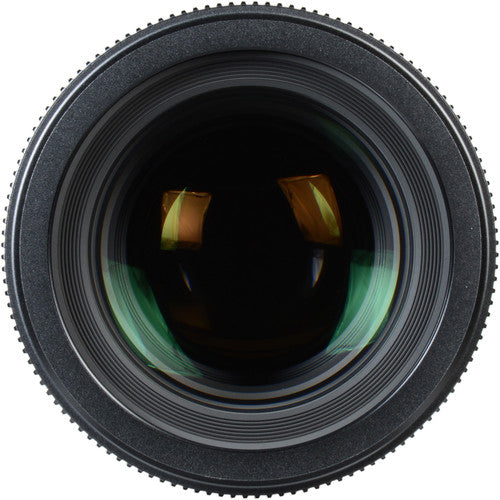

    Lens Front
    The lens features a 95mm front diameter for compatibility with a wide variety of matte boxes and incorporates an 82mm front filter thread.
    Lens Gears
    All three lens gears are standard 0.8 MOD and feature a damper that eliminates metallic sounds when you reach the end of the lens travel.



    Features



    The High Speed Zoom Line offers a constant aperture of T2 throughout the zoom range, and their outstanding optical performance makes them fully ready for high-resolution shooting in 6K-8K. While offering the highest image quality in their class, these zoom lenses are compact and offer amazing value.



      Specifications



      Focal Length 50 to 100mm
      Lens Mount Canon EF Arri PL Sony E
      Format Super35/APS-C
      Image Circle 28.4 mm
      Maximum T-Stop T2
      Minimum T-Stop T16
      Horizontal Angle of View Super35: 27.6 - 14.0°
      APS-C (1.5x): 26.7 - 13.5°
      Minimum Focus Distance from Image Plane 3.17' / 96.5 cm
      Iris Blades 9
      Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
      Iris: 0.8 MOD / 32 Pitch
      Zoom: 0.8 MOD / 32 Pitch
      Front Diameter 95 mm
      Filter Thread 82 mm
      Focus Scales Imperial
      Focus Rotation 180°
      Iris Rotation 60°
      Zoom Rotation 160°
      Zoom Ratio 1.94x
      Electronic Communication Yes
      Tripod Mounting Thread 1/4"-20
      Length 6.90" / 175.2 mm
      Weight 4.1 lb / 1885.0 g
      Packaging Info
      Package Weight 5.3 lb
      Box Dimensions (LxWxH) 11.7 x 6.8 x 6.7"
