Westcott Flex Cine Bi-Color 1-Light Gear Kit (1 x 1')
Description
Westcott Flex Cine Bi-Color 1-Light Gear Kit (1 x 1') - 7638
Key Features
- 1 x Bi-Color 1 x 1' Mat

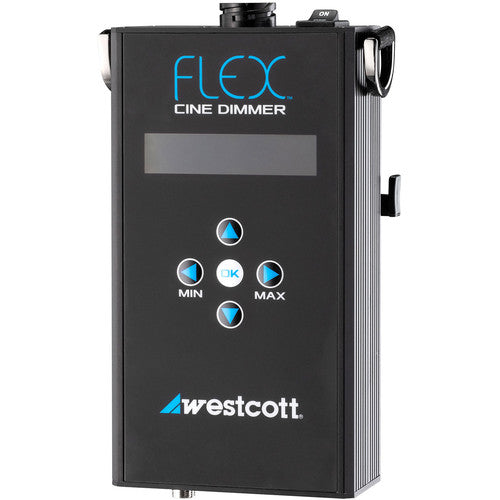

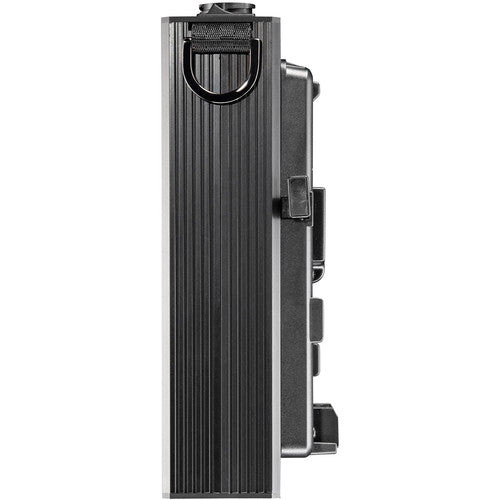

- 1 x Dimmer, 1 x AC Adapter
- 1 x Power Cord, 1 x Hard Diffusion Panel

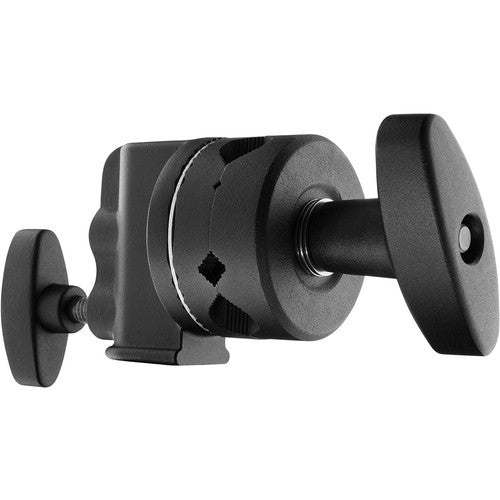

- 1 x Grip Head, 1 x Shoulder Strap

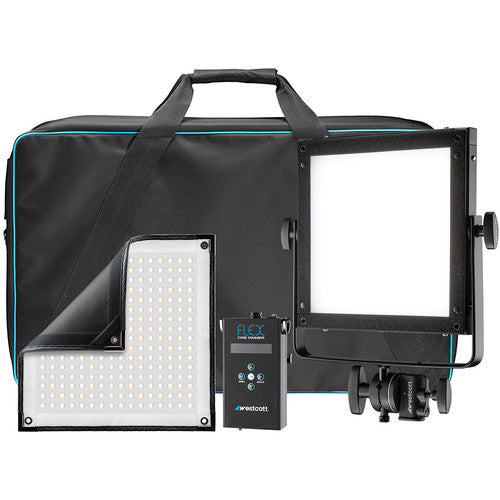

Wescott has put together the 1 x 1' Flex Cine Bi-Color 1-Light Gear Kit to serve as a core setup for the traveling image-maker. The kit includes one 1 x 1' Bi-Color Mat that comes with a dimmer, AC adapter, power cord, grip head, Flex yoke, Flex frame, shoulder strap, hard diffusion panel, and a cable tie. It all fits in the provided Gear bag.

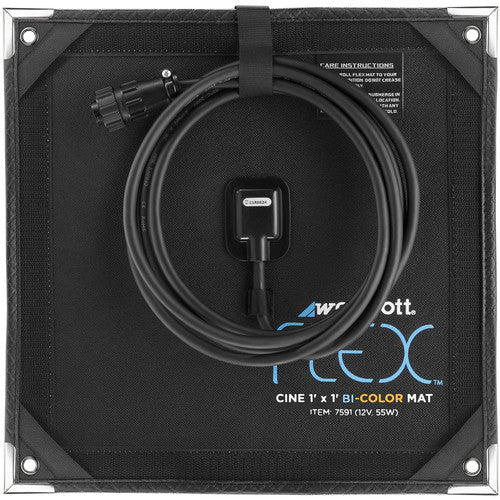

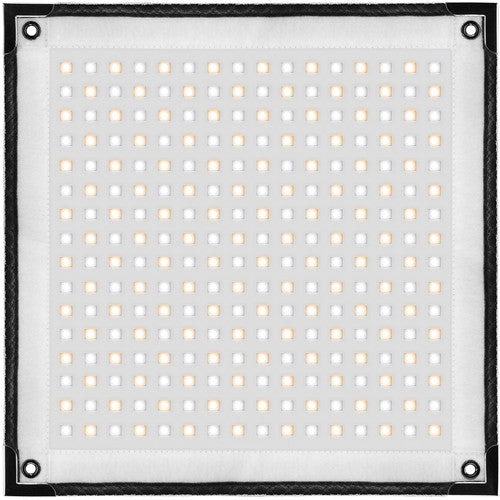

Westcott Flex Cine Bi-Color Mat (1 x 1')

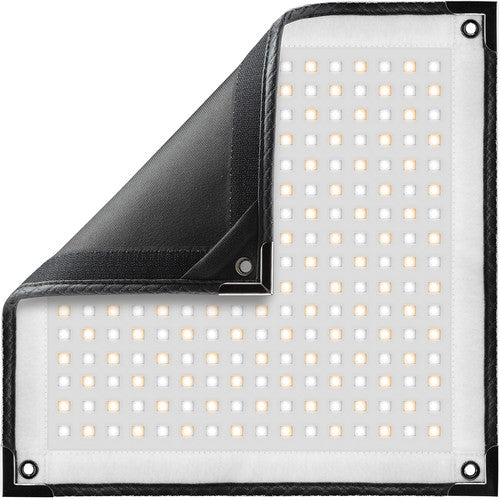

This 1 x 1' Westcott Flex Cine Bi-Color Mat produces 2200 lux of daylight-balanced light with a nominal beam angle of 140°. This flexible mat features hook-and-loop fabric edging, as well as grommits for mounting, and it incorporates magnetic metal-capped corners allowing you to easily mount it on virtually any metallic surface. The flexible design enables you to shape the mat so that it produces a beam angle from 360° when rolled into a cylinder, to 140° when laid out flat.
The color temperature of the light's output is variable from 2800 to 6000K which makes it a good match when shooting exteriors, while the high CRI and TLCI provides excellent color reproduction. The mat is capable of producing flicker-free output from 1 to 100% of its brightness when connected to a Flex Cine Wireless Dimmer (not included). For the mat to function you will need to connect it to a Flex Cine Wireless Dimmer, and power it with a 14.8V V-mount battery or power supply.
The Flex Cine Mat features hook-and-loop fabric, grommets, and metal-capped corners that are magnetic, which can all be used for mounting (Optionally a yoke and flex mount are available separately) Reinforced mounting points and a reinforced cable mount compared to previous Westcott flexible LED mats extend the life of the Flex Cine Mat This flexible mat can be shapped to fit into tight spaces It features an IP64 rating 2200 lux at just over 3' UPC: 812735028682Westcott Scrim Jim Cine 1/3-Stop Hard Diffusion Panel (1 x 1')
Add a frosted surface to your 1 x 1' Flex LED Mat and frame with this Scrim Jim Cine 1/3-Stop Hard Diffusion Panel from Westcott. This hard sheet softens and diffuses the light output resulting in a more flattering light quality that minimizes the cross-shadowing effect. The panel also features riveted touch fastener edges for almost instant mounting to the Scrim Jim Cine Frame.

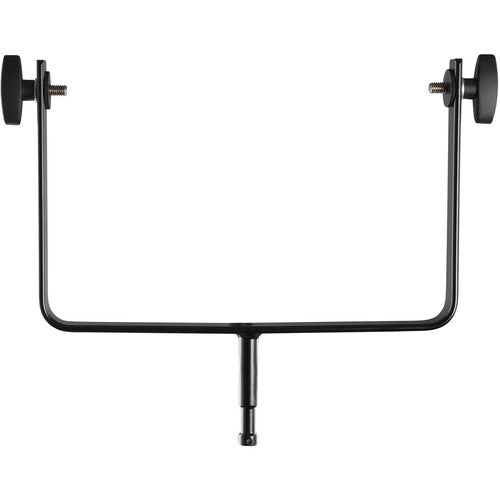

UPC: 812735027067Westcott Flex Yoke (1')
For longer-term applications of a 1' Flex LED Mat, Westcott has developed a Flex Yoke that is designed to work with a 1 x 1', 1 x 2' or 1 x 3' Scrim Jim Cine Frame to provide the necessary framework and mounting points for mounting to standard grip equipment. The yoke mounts directly to the frame's 5/8"-16 threads and features heavy-duty hardware for ensuring longevity and ease of use. The yoke then offers a 5/8" baby pin that can be mounted into a standard grip head with ease. Additionally, the all-metal construction ensures durability on set and on location.

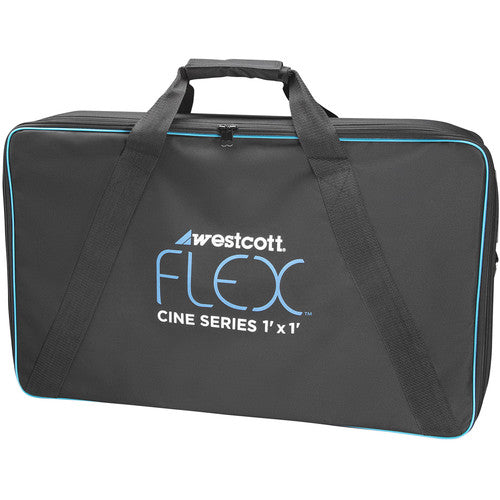

UPC: 812735027364Westcott Flex Cine Gear Bag (1 x 1')
The 1 x 1' Flex Cine Gear Bag from Westcott is a soft yet durable carry case with a plastic-plated exterior. It conveniently fits select Flex 1 x 1' LED kits in fully-assembled form, allowing you to pack and unpack quickly.
It fits two Flex Cine 1 x 1' Sets, two Flex Cine 1 x 1' 1-Light Gear Kits, one Flex Cine 1 x 1' 2-Light Gear Kit, or one Flex 1 x 1' with Barndoors. Customizable foam inserts and a zippered mesh pocket allow you to organize cables and other accessories, while soft carry handles and an adjustable, removable shoulder strap provide two ways of carrying the case. There's also a clear card holder for identification.
Westcott Flex Cine Bi-Color Mat (1 X 1') Specs
Light FixtureBeam Angle | 360 to 140° |
Color Temperature | 2800 to 6000K |
Color Accuracy Standard | CRI 97 TLCI 98 |
Cooling System | Passive |
Dimming | Yes, 1 to 100% (Continuous) |
Photometrics | 204.4 fc / 2200 lux at 3.28' / 1 m |
Expected Lamp Life | 50000 Hours |
Rectangular Panel Size | 12 x 12' / 365.76 x 365.76 cm |
Fixture Dimensions | 12.0 x 12.0 x 0.5" / 0.3 x 0.3 x 0.0 m |
Fixture Weight | 1.26 lb / 0.57 kg |
Battery Plate | None |
Power Input Connector | 9-PIN TE |
Yoke Mount | None |
Fixture Mount | None |
DC Input Power | 14.4 to 14.8 VDC |
Max Power Consumption | 55 W |
IP Rating | IP64 |
Operating Temperature | 140°F / 60°C |
Package Weight | 2.775 lb |
Box Dimensions (LxWxH) | 17.7 x 15.65 x 2.9" |
Westcott Scrim Jim Cine 1/3-Stop Hard Diffusion Panel (1 X 1') Specs
Size | 1 x 1' / 0.3 x 0.3 m |
Light Loss | 1/3 stop |
Dimensions | 11.9 x 11.9 x 0.2" / 30.2 x 30.2 x 0.5 cm |
Weight | 0.45 lb / 0.2 kg |
Package Weight | 0.475 lb |
Box Dimensions (LxWxH) | 13.7 x 12.3 x 0.35" |
Westcott Flex Yoke (1') Specs
Size | 1' / 0.3 m |
Mounting | 5/8" baby pin |
Package Weight | 1.58 lb |
Box Dimensions (LxWxH) | 16.35 x 13.6 x 1.65" |
Westcott Flex Cine Gear Bag (1 X 1') Specs
ExteriorMaterial of Construction | Plastic |
Exterior Dimensions (W x H x D) | 28 x 17 x 4" / 71 x 43 x 10 cm |
Weight | 7.5 lb / 3.4 kg |
Package Weight | 7.27 lb |
Box Dimensions (LxWxH) | 29.4 x 16.7 x 4" |
