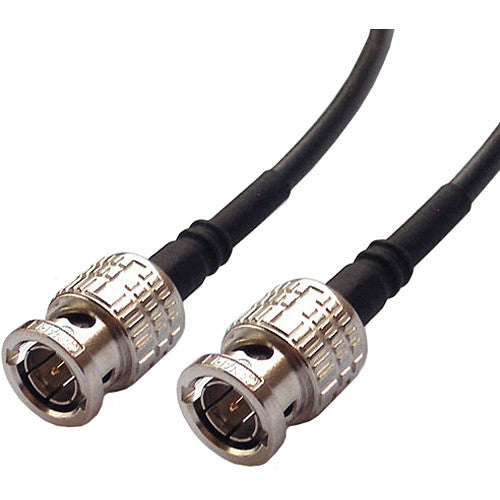

Canare 2.5HDC Ultra Slim HD-SDI BNC Cable (1.5m)

Product type: Camera Accessories

Vendor: Canare

Availability:

€32

Add to the wishlist

Overview

Canare 2.5HDC Ultra Slim HD-SDI BNC Cable (1.5m)

Product Highlights

  • 75 Ω, 23 AWG Coaxial Cable
  • Multi-Layered, Highly-Foamed Insulation
  • Different Foaming Ratio Per Layer
  • Tinned Copper Braid and Foil Shielding
  • Ideal for Internal Rack Wiring

This 1.5 meter Canare 2.5HDC Ultra Slim 3G/HD SDI BNC Cable is a 75 Ω, 23 AWG coaxial cable for internal rack wiring. It features highly-foamed PE insulation that allows better attenuation because of the softness of the foaming. The insulation is made up of multiple layers at different foaming ratios to increase its durability. The shielding is tinned copper braid with aluminium foil, which provides better rejection of interference because of the solid composition of the foil.

Perfect length for wireless video to camera / monitor / gimbal etc.

The Film Equipment Store is an official re-seller for all Canare cables and connectors. Canare custom length cables can be made in-house to order on request, using Canare equipment, cables and components.

Additional Features
  • Flame resistant UL 1666 riser
  • SMPTE 259M, 292M, 424M
  • Made for the Cine / TV industry, 4K, UHD, FHD
  • Black
  • Made in Japan to the highest industry standards

      Specifications

      Canare D2.5HDC005E Specs

      Cable Length 1.5 m
      Conductor DC Resistance 0.002 Ohms/ft (Up to 5280' / 1600 m)
      Shielding 95% Copper
      Wire Gauge 23 AWG
      Outer Diameter 0.165" / 4.2 mm
      Maximum Impedance 75 Ohms
      Maximum Signal Loss 30.2 dB at 750 MHz over 328' / 100 m
      Weight 0.0 lb / 0.1 kg
      Packaging Info
      Package Weight 0.075 lb
