PORTKEYS MT22DS 21.5" PBP Dual-Screen Production Monitor | Film Equipment Store Ireland

PORTKEYS MT22DS 21.5" PBP Dual-Screen Production Monitor | Film Equipment Store Ireland

Description

* We can supply the full range of Portkeys products and will price match - Please contact us at sales@filmequipmentstore.com *

PORTKEYS MT22-DS Overview

Key Features

1920 x 1080 2-Screen Production Display
View Split Screen Images
1000 cd/m² Brightness

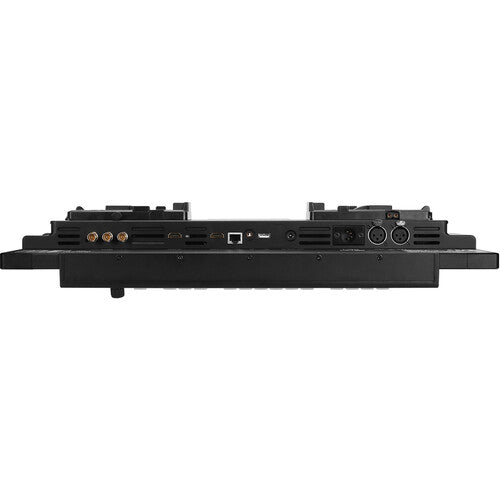

HDMI and 3G-SDI Input/Output
Signal Cross-Conversion Support

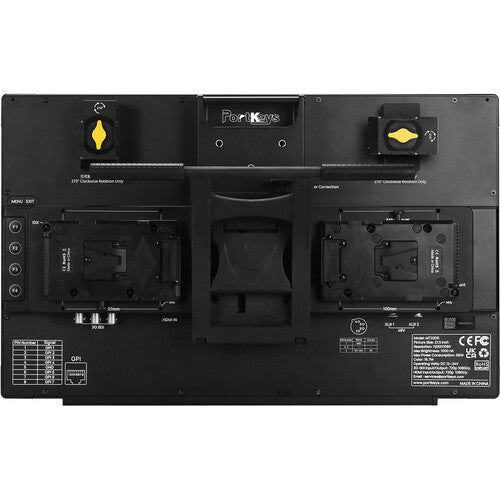

Dual V-Mount Plates
Various Built-In Imaging Tools

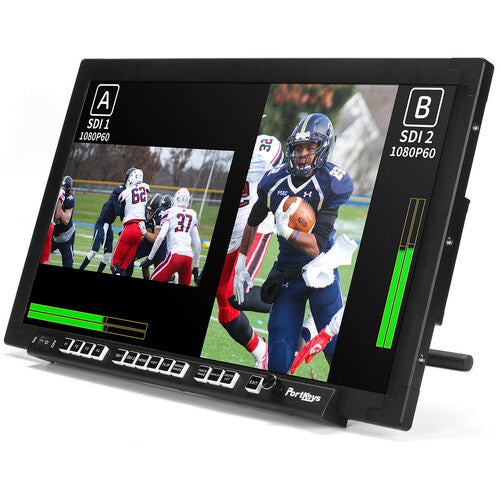

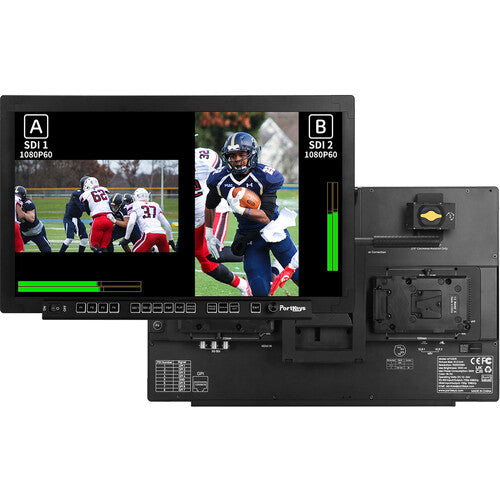

Compare video input signals on a split screen with this MT22DS 21.5" PBP Dual-Screen Production Monitor from PORTKEYS. The monitor features a 1920 x 1080 resolution, 1000 cd/m² brightness, and it supports up to 1080p60 HD input. There are HDMI and 3G-SDI inputs and outputs, and they support cross-conversion between HDMI and SDI signals. You can view PBP (Picture-by-Picture) input signals side by side on the display and even view vertical and horizontal versions of the image on different sides.

There are 3-pin XLR inputs to add audio from a mic or mixer, and a headphone jack provides audio output. Whether you prefer to use histograms, waveforms, false colors, or zebras, this monitor has the right tool. Packaged with a dual V-mount battery plate, folding mount, and power adapter, this production monitor is ready to go in just about any production environment.

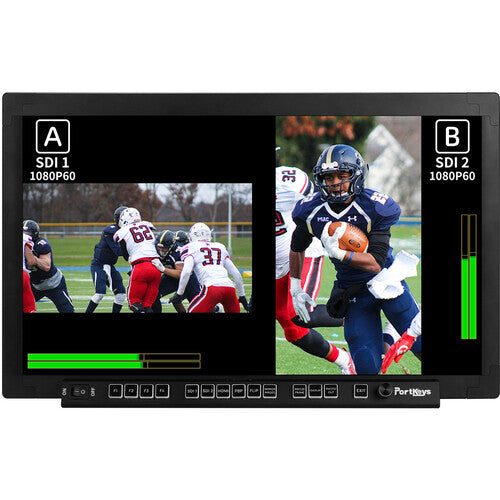

Split Screen Monitoring

Two screens can load the same 3D LUT file and support dual horizontal/dual vertical/left horizontal, right vertical/left vertical, right horizontal/left horizontal, and right vertical cropping of the same source

3D LUT HDMI Output

The HDMI and 3G-SDI ports can output video after loading 3D LUTs from a USB flash drive

Custom JPG Picture Freeze Frame

After capturing an image, it can be compared with real-time video by semi-transparent image superposition using a 16:9 1920 x 1080 jpg image

Aluminum All-Metal Chassis

The aluminum chassis features fast heat dissipation and high durability

HDMI to SDI Output

The monitor features built-in signal conversion, with no external signal conversion box required

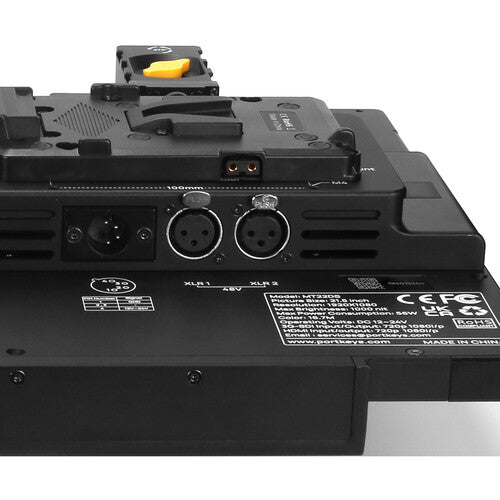

48V Phantom Audio

The two 3-pin XLR inputs feature 48V phantom power

Image Tools

3D LUT support with custom LUTs via USB
Peaking
False color
Luma
Waveform
Real-time eye focus
Anamorphic de-squeeze
Anamorphic lens calibration
Frame guides, crosshairs, grids
Color temperature
Brightness
Sharpness
Cropping
Check field
Zebra
Luma histogram
Custom RGB
Audio meters
HDR/HLG support
