Description

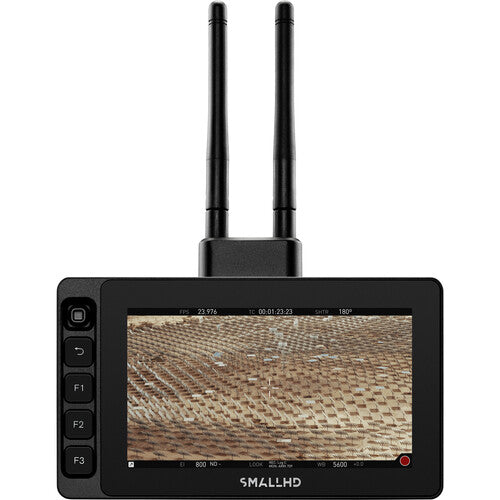

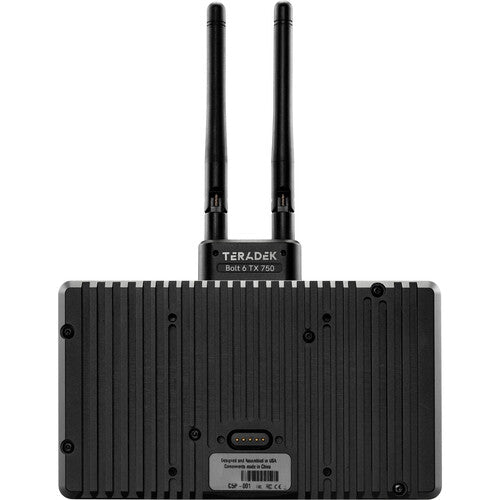

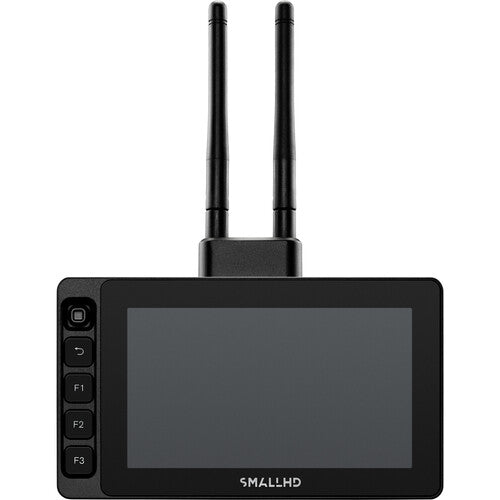

SmallHD ULTRA 5 Bolt 6 TX 750 Monitor

Key Features

5" 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter

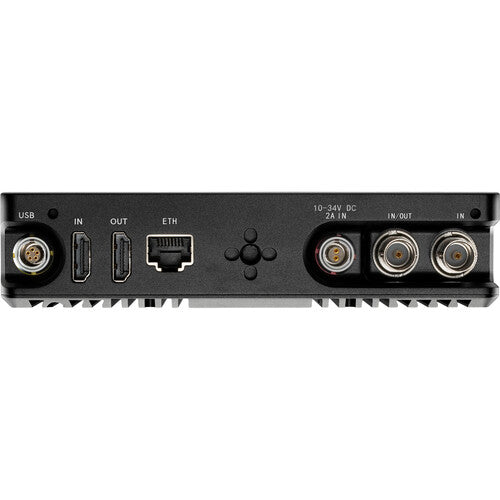

3G-SDI & HDMI Inputs & Outputs
6 GHz Wireless Transmission up to 750'
Bright 3000 cd/m² LCD Panel
10-Bit 4:2:2 DCI-P3 Color Gamut
5-Pin USB & Ethernet Control Ports
Power via 2-Pin LEMO Input
PageOS 5 with Imaging Tools
Milled Aluminum Unibody Housing

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.

Features

The Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside the Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750' away Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel HDMI and 3G-SDI inputs and outputs The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in less than 0.001 seconds Buttons around the monitor allow you to use the monitor in any conditions The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor Power using a 2-pin power input Optional RED camera control via the micro-USB port Optional ARRI/Sony VENICE camera control via the Ethernet port Durable aluminum chassis Display Tools

Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with a dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels
