SWIT 500' Wireless Video Transmission System With Embeded Audio

Product type: wireless

Vendor: swit



Add to the wishlist


SWIT Flow500 Wireless Transmission
Swit FLOW500 (FLOW500) SDI and HDMI 150m (500ft) Wireless FHD Video Transmission System (1x Transmitter, 1x Receiver). KUWI Wireless Technology
SDI&HDMI 500ft / 150m (LOS)
FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.
Input & Output

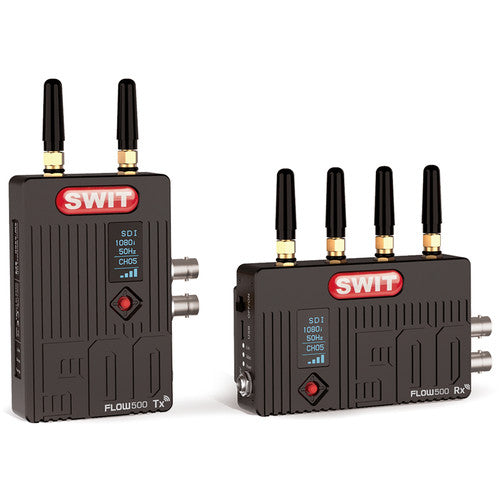

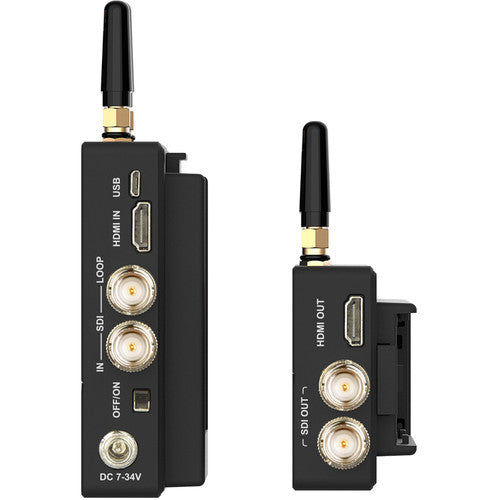

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
The Receiver (Rx) has 4 omni antennas, supports
1x 3G/HD-SDI output
1x HDMI 1.3 output
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
150 meters Transmission
Strong Wall-cross Performance
FLOW500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission,...
  • 1x Transmitter
  • 1x Receiver
  • 1x Articulating Arm Trestle (Cold shoe and 1/4”)
  • 1x D-tap to Pole-tap DC cable
  • 1x AC-DC Power Adaptor
  • 1x Carrying Case
