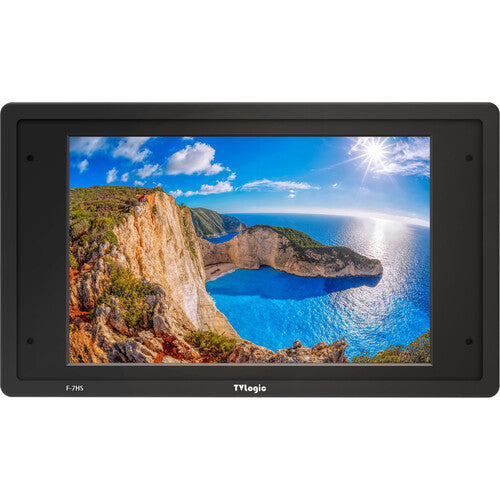

TV Logic F-7H (F7H) 7inch Full HD 1920x1080 Ultra High Luminance Production Monitor

Product type: Monitor

Vendor: TV-Logic

Availability:

€1,600.00

Add to the wishlist

Overview

  • 7", 1920 x 1080, 3G-SDI and HDMI Monitor
  • 3600 cd/m² Maximum Brightness
  • Waveform / Vectorscope
  • 160° Viewing Angle
  • Top-Mounted Menu and Function Buttons
  • On-Screen Menu Display
  • HDR and 3D-LUT Support
  • On-Screen and Rear Tally
  • Multiple 1/4"-20 Mounting Holes
  • Optional Battery Plates



Features



The TVLogic 7" FHD HDR Field Monitor with 3G-SDI, HDMI 1.3, and 3600 cd/m² is well suited for work in the field, on a camera, or in a studio. the IPS panel features 1920 x 1080 resolution with a 160° viewing angle. It supports 3G-SDI as well as HDMI 1.3, and can cross-convert between SDI and HDMI. The 3600 cd/m² brightness and 1200:1 contrast ratio provide a bright clear image that is viewable in daylight without a hood. The screen supports REC 709, but can also display HDR imagery supporting HLG, PQ, and SLOG3. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.

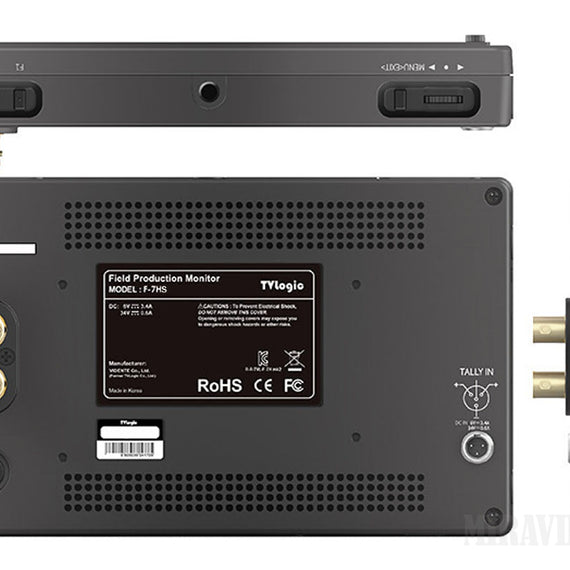

The built-in, on-screen menu display allows you to select and adjust the monitor's controls, on-screen markers, load and save 3D LUTs, and select from SDR to HDR. It displays tally signal through the power connection and displays tally on both the front and rear of the monitor. Threaded 1/4"-20 mounting holes are built into the top, bottom, left, and right sides, allowing you to mount it using an optional accessory arm, or to your camera using the included cold shoe mounting adapter. Optionally available battery plates expand the power options of the monitor.

  • Audio level meter display
  • Blue-only/mono
  • Focus Assist
  • H/V delay
  • H/V flip
  • Waveform and vectorscope
  • Key lock
  • Luma(Y') zone check
  • Marker
  • Max brightness on/off
  • Range Error
  • Timecode display
  • 1-to-1 pixel zoom
  • ARRI camera metadata support
  • Anamorphic de-squeeze
  • HDMI to SDI conversion
  • SDI to HDMI conversion
  • Internal pattern generator (0~100% gray/color bars + pluge)
  • Center marker, safety area marker, marker mat, marker size, fit marker, thickness adjustment function
3D LUT Support
The monitor internally stores up to three 3DLUTs. You can also load from a list of available 3DLUT files. The monitor supports the following formats: Cube, GV Lut, Quantel, DaVinci, and AssScratch. Once saved, the 3DLUT is retained even when the power is turned off.
HDR
The F-7H supports HDR display using EOTF in PQ, HLG, or SLOG3. In the Auto mode, the HDR image is converted within the range of set peak luminance and black level. In the Off mode, the video will clip.
Marker
Available Marker types are Off, 16:9, 4:3, 4:3, On Air, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1, 4:3, and user-definable top/bottom and left/right.
Aspect Ratio
You can adjust the aspect ratio of the monitor, regardless of the original aspect ratio of the input signal. Aspect modes are changed as follow: 16:9, 4:3, 2.35:1, 1.85:1, 15:9, 16:10], Anamorphic 1.3x, Anamorphic 1.5x, Anamorphic 2.0x, and Auto. Auto mode enables the aspect ratio of the output signal to be synchronized to the original aspect ratio of the input signal.
Tally
The F-7H supports on-screen and rear tally. Tally signals are sent through the power connector.
On-Screen Display
You can select the type, then adjust the size and transparency of the waveform and vectorscope.
Optional Battery Plates
Optional battery plates are available to power your monitor from:



  • L-series
  • Cannon BP series
  • Panasonic CGA/VB series
  • Sony BP-U series
  • LP-E6
  • V-mount
  • Gold mount



    Specifications



    Display
    Panel Type IPS-Type LCD
    Display Size 7.0" / 17.8 cm
    Active Area 5.95 x 3.72" / 151.2 x 94.5 mm
    Screen Resolution 1920 x 1080
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 160°
    Vertical: 160°
    Touchscreen No
    Maximum Brightness 3600 cd/m2
    Contrast Ratio 1200:1
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    LUT Support Yes
    Image Controls Blue Only, H/V Delay, Waveform, Zebra, Vectorscope
    I/O
    Video 1 x 3G-SDI (BNC) Input
    1 x 3G-SDI (BNC) Output
    1 x HDMI 1.3 (HDMI Type A) Input
    1 x HDMI 1.3 (HDMI Type A) Output
    Embedded Audio SDI
    HDMI
    Audio 1 x 3.5 mm Line Input
    1 x 3.5 mm Headphone Output
    Built-In Speaker 1
    Other I/O None
    Card Slot None
    Format Support
    Video Format SDI (10-Bit 4:2:2 YCC)
    1080p: 50/59.94/60
    1080PsF: 24/25/29.97/30
    1080i: 50/59.94/60
    720p: 50/59.94/60
    PAL: 50
    NTSC: 59.94
    SDI (10/12-Bit 4:4:4 RGB, YCC)
    1080p: 23.98/24/25/29.97/30
    1080PsF: 23.98/24/25/29.97/30
    HDMI (8/10/12-Bit 4:4:4 RGB, YCC)
    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080i: 50/59.94/60
    720p: 50/59.94/60
    576p: 50
    PAL: 50
    480p: 60
    NTSC: 60
    HDMI (8/10/12-Bit 4:2:2)
    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080i: 50/59.94/60
    720p: 50/59.94/60
    576p: 50
    PAL: 50
    480p: 60
    NTSC: 60
    PC Resolutions 1920 x 1080 at 60 Hz
    1280 x 1024 at 60 Hz
    1280 x 800 at 60 Hz
    1280 x 768 at 60 Hz
    1024 x 768 at 60/70/75 Hz
    800 x 600 at 60/75 Hz
    640 x 480 at 60/75 Hz
    640 x 400 at 70 Hz
    Video Signal Conversion SDI to HDMI

    HDMI to SDI

    Power
    DC Input Power 6.8 to 12 VDC at 1.8 A
    Battery Type None
    Power Consumption 19 W
    Mounting
    Mounting 9 x 1/4"-20 Thread
    Environmental
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    General
    Dimensions (W x H x D) 8.31 x 4.92 x 1.11" / 211 x 125 x 28.3 mm, Including Connectors
    Weight 1.68 lb / 0.76 kg
    Packaging Info
    Package Weight 2.35 lb
    Box Dimensions (LxWxH) 11.6 x 6.4 x 3.4"
