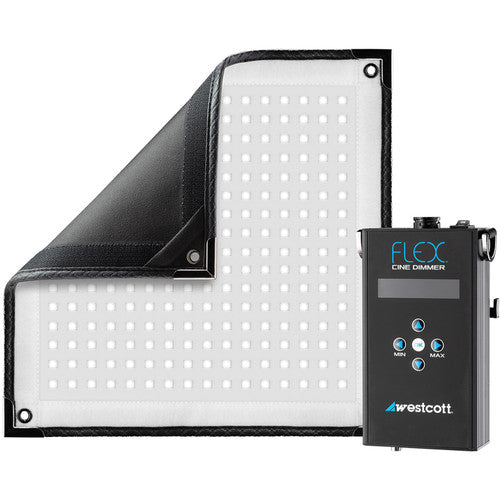

Westcott Flex Cine Daylight Mat 1-Light Set (1 x 1')

Product type: Lighting

Vendor: westcott

Availability:

€899.00

Add to the wishlist

Description

Westcott Flex Cine Daylight Mat 1-Light Set (1 x 1') - 7703



Key Features
  • 1 x Daylight 1 x 1' Mat, US/CA Plug
  • Pliable Design, 140 to 360° Coverage
  • Mat is IP64 Water-Resistant
  • Color: 5600K, CRI/TLCI: 97/96

    Wescott has put together the 1 x 1' Flex Cine Daylight Mat 1-Light Set to serve as a core setup that's ideal for product, ecommerce, and portraiture. The kit includes one 1 x 1' Daylight Mat that comes with a dimmer, AC adapter, power cord, and shoulder strap.

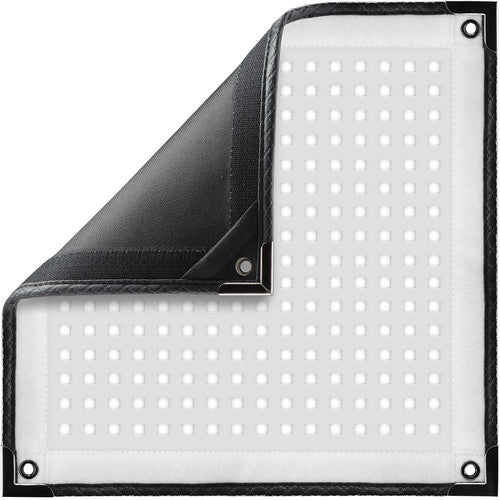

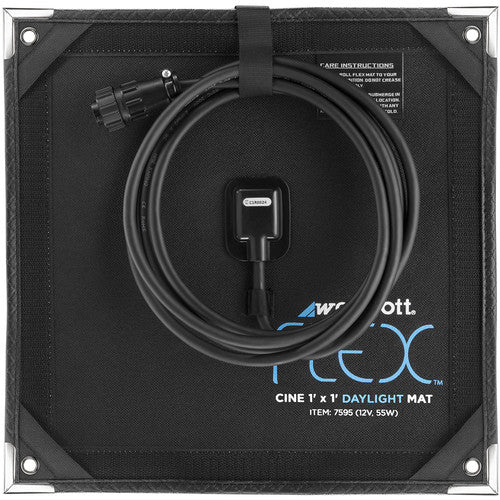

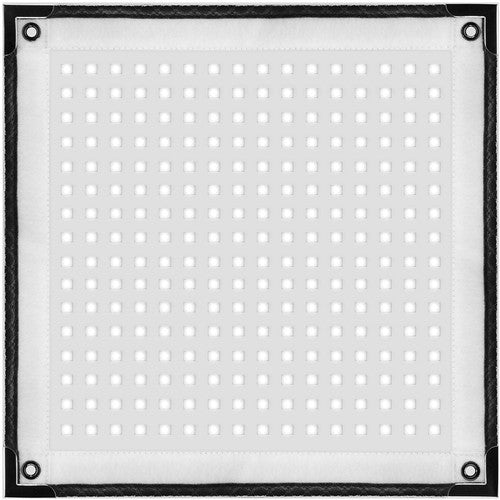

    Westcott Flex Cine Daylight Mat (1 x 1')

    This 1 x 1' Westcott Flex Cine Daylight Mat produces 2200 lux of daylight-balanced light with a nominal beam angle of 140°. This flexible mat features hook-and-loop fabric edging, as well as grommits for mounting, and it incorporates magnetic metal-capped corners allowing you to easily mount it on virtually any metallic surface. The flexible design enables you to shape the mat so that it produces a beam angle from 360° when rolled into a cylinder, to 140° when laid out flat.

    The daylight color temperature makes a good match when shooting exteriors, or interiors with daylight sources, while the high CRI and TLCI provides excellent color reproduction. The mat is capable of producing flicker-free output from 1 to 100% of its brightness when connected to a Flex Cine Wireless Dimmer (not included). For the mat to function you will need to connect it to a Flex Cine Wireless Dimmer, and power it with a 14.8V V-mount battery or power supply.

    The Flex Cine Mat features hook-and-loop fabric, grommets, and metal-capped corners that are magnetic, which can all be used for mounting (Optionally a yoke and flex mount are available separately) Reinforced mounting points and a reinforced cable mount compared to previous Westcott flexible LED mats extend the life of the Flex Cine Mat This flexible mat can be shapped to fit into tight spaces It features an IP64 rating 2200 lux at just over 3' UPC: 812735028712

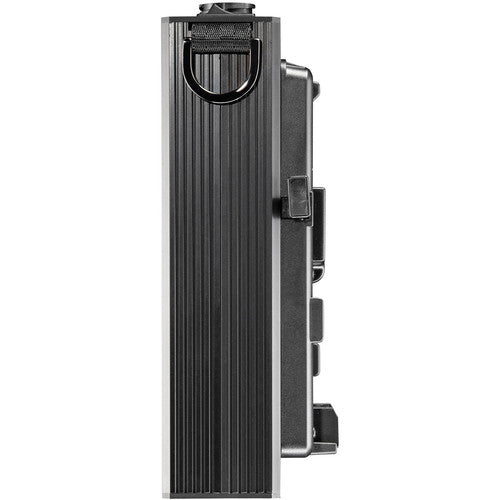

    Westcott Flex Cine Dimmer

    Compatible with any Flex Cine Bi-Color or Daylight LED mat up to 1x2', the Flex Cine Dimmer from Westcott is also backwards compatible with Flex 1x1' and 1x2' mats using an optional legacy TE-9 Pin adapter. Not just a dimmer that can adjust light intensity from 1 to 100%, the flex dimmer is also a controller that can vary color (on bi-color mats) from 2800 to 6000K.You can make adjustments locally on the unit, but they can also be made wirelessly by Wi-Fi, using a free app. While the dimmer can run on wall current via its included AC adapter, it can also be powered (and power your light) by 14.4 to 26V batteries, thanks to its built-in V-Mount battery plate. The dimmer has 1/4"-20 female threads for mounting, as well a removable shoulder strap for hanging.







    Westcott Flex Cine Daylight Mat (1 X 1') Specs

    Light Fixture
    Beam Angle 360 to 140°
    Color Temperature 5600K
    Color Accuracy Standard CRI 97
    TLCI 96
    Cooling System Passive
    Dimming Yes, 1 to 100% (Continuous)
    Photometrics 204.4 fc / 2200 lux at 3.28' / 1 m
    Expected Lamp Life 50000 Hours
    Rectangular Panel Size 12 x 12" / 30.48 x 30.48 cm
    Fixture Dimensions 12.0 x 12.0 x 0.5" / 30.5 x 30.5 x 1.3 cm
    Fixture Weight 1.26 lb / 0.57 kg
    Connectors
    Battery Plate None
    Power Input Connector 9-PIN TE
    Mounting
    Yoke Mount None
    Fixture Mount None
    Power
    DC Input Power 14.4 to 14.8 VDC
    Max Power Consumption 55 W
    Physical
    IP Rating IP64
    Operating Temperature 140°F / 60°C
    Packaging Info
    Package Weight 2.79 lb
    Box Dimensions (LxWxH) 17.6 x 15.6 x 2.8"

    Westcott Flex Cine Dimmer Specs

    Physical
    Material of Construction Aluminum
    Voltage AC/DC Powered
    AC Adapter Input Voltage: 100-240 VAC, 50/60 Hz
    Dimmer Watts: 100 W
    Input Voltage: 14.4-26 V
    Output Voltage: 12-24 V
    Battery Compatibility 14.4/14.8 V V-Mount Li-Ion Battery
    26 V V-Mount Li-Ion Battery
    Dimming 0-100%
    Color Temperature Variable in Bi-Color Models
    Connections Power Connection: Barrel Plug
    Outer Dimension: 0.21" / 5.5 mm
    Inner Pin: 0.09"/ 2.5 mm
    Mat Connector: TE9-Pin Male
    USB-C
    Cooling Fan
    Control Local on Fixture
    Wi-Fi via Free App
    Mount 1/4"-20 Female Threads
    Cable Length: 16.4" / 41.6 cm
    Operating Temperature 14-113°F / -10-45°C
    Certifications AC Adapter: CE, FCC, US-UL-C
    Dimensions 7.28 x 3.66 x 2.52" / 18.5 x 9.3 x 6.4 cm
    Weight 5.34 lb / 2.4 kg
    Packaging Info
    Package Weight 4.525 lb
    Box Dimensions (LxWxH) 14.55 x 10 x 3.45"
