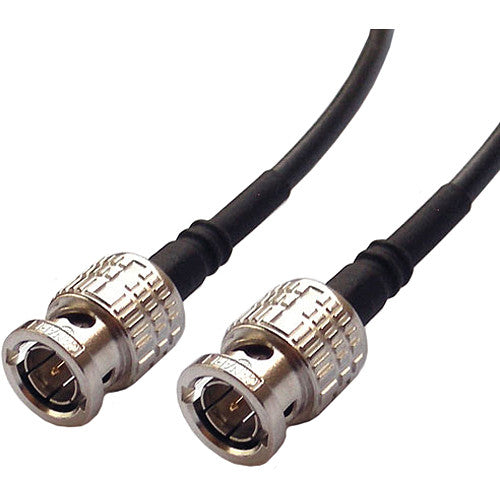

Canare 2.5HDC Ultra Slim HD-SDI BNC Cable (0.7m)

Overview

Canare 2.5HDC Ultra Slim HD-SDI BNC Cable (0.7m)

Product Highlights

75 Ω, 23 AWG Coaxial Cable
Multi-Layered, Highly-Foamed Insulation
Different Foaming Ratio Per Layer
Tinned Copper Braid and Foil Shielding
Ideal for Internal Rack Wiring

This 0.7 meter Canare 2.5HDC Ultra Slim 3G/HD SDI BNC Cable is a 75 Ω, 23 AWG coaxial cable for internal rack wiring. It features highly-foamed PE insulation that allows better attenuation because of the softness of the foaming. The insulation is made up of multiple layers at different foaming ratios to increase its durability. The shielding is tinned copper braid with aluminium foil, which provides better rejection of interference because of the solid composition of the foil.

Perfect length for wireless video to camera / monitor / gimbal etc.

The Film Equipment Store is an official re-seller for all Canare cables and connectors. Canare custom length cables can be made in-house to order on request, using Canare equipment, cables and components.

Additional Features

Flame resistant UL 1666 riser
SMPTE 259M, 292M, 424M
Made for the Cine / TV industry, 4K, UHD, FHD
Black
Made in Japan to the highest industry standards

Specifications

Canare D2.5HDC005E Specs

Cable Length	0.7 m
Conductor DC Resistance	0.002 Ohms/ft (Up to 5280' / 1600 m)
Shielding	95% Copper
Wire Gauge	23 AWG
Outer Diameter	0.165" / 4.2 mm
Maximum Impedance	75 Ohms
Maximum Signal Loss	30.2 dB at 750 MHz over 328' / 100 m
Weight	0.0 lb / 0.1 kg

Packaging Info
Package Weight	0.075 lb
