Manfrotto Nitrotech N12 & 536 Carbon Fiber Single Legs Tripod System

Product type: Tripods and Sliders

Vendor: Manfrotto

Availability:

€1,290.00

Add to the wishlist

Overview

Key Features
  • Nitrotech N12 Fluid Head
  • 26.4-Pound Load Capacity
  • 8.8 to 26.4-Pound Counterbalance Range
  • 75mm Flat Base

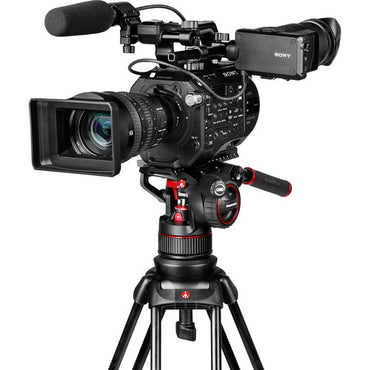

Manfrotto's Nitrotech N12 & 536 Carbon Fiber Single Legs Tripod System combines the Nitrotech N12 video head, with its 26.4-pound load capacity, and carbon fiber tripod legs. The head features a continuously variable counterbalance range from 8.8 to 26.4 pounds, and all the controls for the head are located on the left side so you don't have to take your


Manfrotto Nitrotech N12 Overview

Manfrotto's Nitrotech N12 & 536 Carbon Fiber Single Legs Tripod System combines the Nitrotech N12 video head, with its 26.4-pound load capacity, and carbon fiber tripod legs. The head features a continuously variable counterbalance range from 8.8 to 26.4 pounds, and all the controls for the head are located on the left side so you don't have to take your right hand off the pan handle to operate the head.

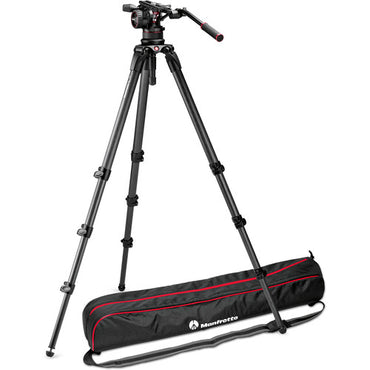

The tripod legs weigh a mere 7 pounds, yet can support up to 55 pounds. The height range is from 10 to 80", and the legs do not require a spreader yet remain stable from minimum to maximum height. The legs feature a half ball fitting, which requires the inclusion of a flat base to half ball leveling adapter, and you can carry the entire system in the included padded carrying case.

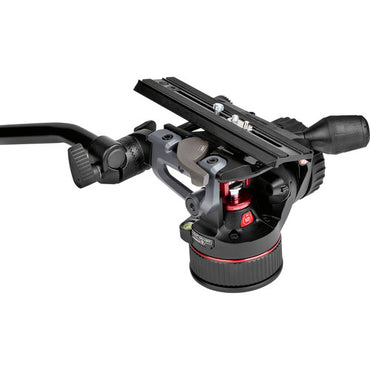

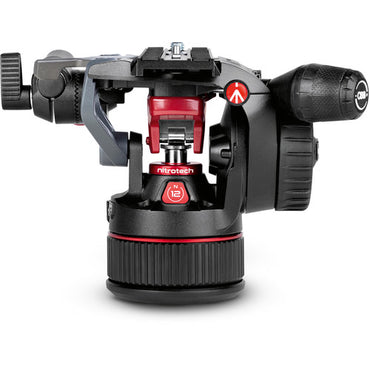

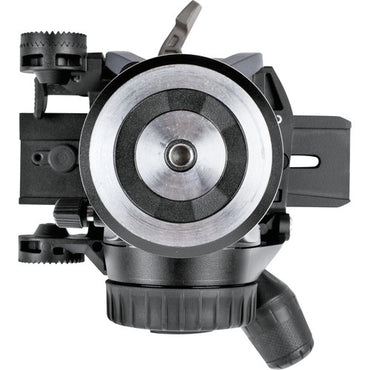

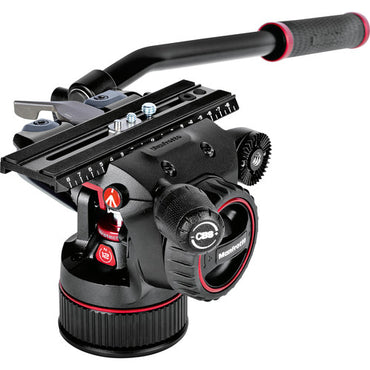

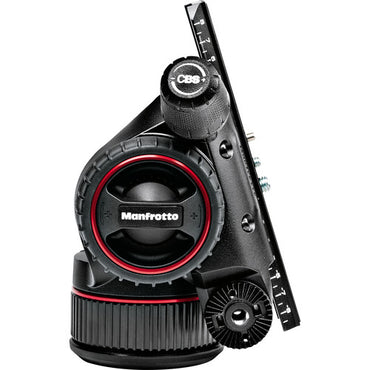

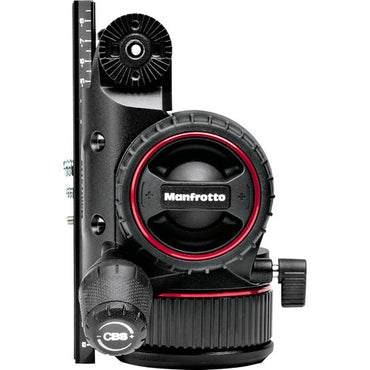

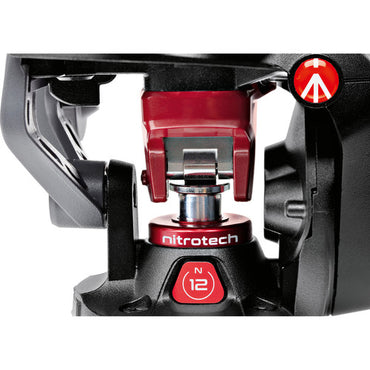

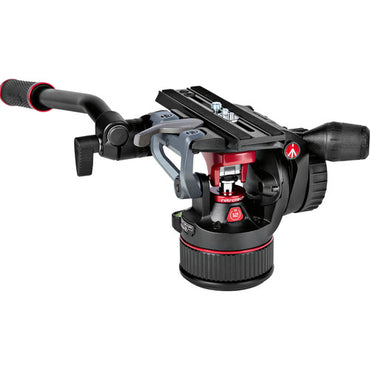

The Manfrotto Nitrotech N12 Video Head features an innovative, continuous counterbalance system based on a nitrogen-piston mechanism. Unlike heads with stepped levels of counterbalance, the Nitrotech N12 can be precisely adjusted to the weight of your camera rig. Adjust the counterbalance by twisting the knob on the left side towards the front of the head. The knob itself can be extended with a pull, adding room useful with a wider camera. With a maximum payload capacity of 26.4 pounds, the Nitrotech N12 is designed to be used with a variety of video or DSLR/MFT camera rigs. This 75mm flat-base head can be used with a half-ball adapter (available separately) for maximum flexibility in mounting to tripods, sliders, hi-hats, or other supports.

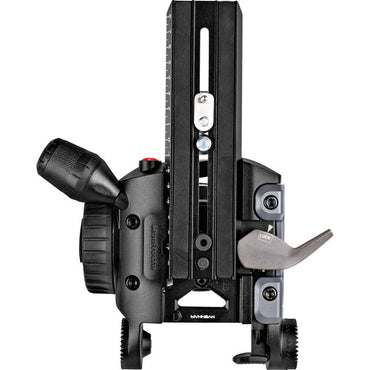

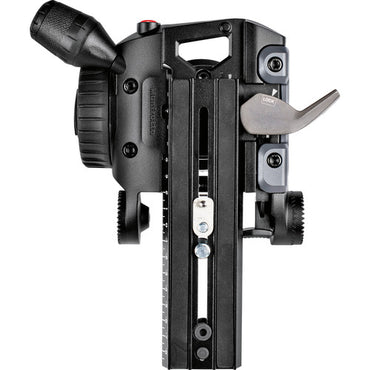

The Nitrotech N12 includes several pro-style features for reliable, efficient use of the head. The included camera mounting plate locks in from the side, and it has a sliding design to help balance the rig on the head. Smooth panning and tilting moves are enabled by the Nitrotech N12's variable fluid drag systems. A push-button illuminated bubble at the rear of the head lets you see at a glance if the head is leveled. Unlike some other Manfrotto heads, the N12's controls are on the left side of the head, freeing your right hand to operate the panhandle.

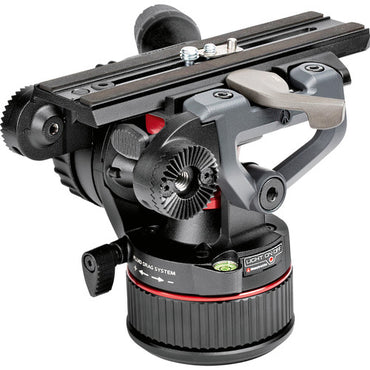

Looking to lessen the weight of accessories on your camera rig? Attach your monitor, rangefinder, light, flag, etc. to the 3/8"-threaded Easy Link Connector built into the side of the Nitrotech N12. This transfers the weight of the accessory away from the camera and to the head, making the camera less top-heavy.

Innovative nitrogen-piston counterbalance system provides precise adjustment based on your camera rig's weight
Fluid drag system for smooth pan and tilt moves
Lightweight head with 75mm flat base can be used with a half-ball adapter (available separately) for flexible configurations when using tripods, sliders etc.
An Easy Link Connector is embedded in each panhandle mounting rosette, which enables the attachment of an accessory to the head itself, reducing weight on the camera body
Left-sided controls free your right hand for operating the panhandle

Manfrotto 536 Carbon Fiber Video Tripod

The Manfrotto 536 Carbon Fiber Video Tripod has four sections and a 75/100mm bowl adapter ring for industry standard fluid heads. With carbon fiber tubes and magnesium die castings, the 536 boasts great stability, high load capability, and a light weight.

Materials

Thanks to carbon fiber single tube and magnesium die castings, this tripod provides great stability and load capability in a lightweight, ergonomic, easy-to-use and compact design

Angle Selector

An angle selector is offered for adjusting the leg angle in an easy and precise way

Bowl Adapter Ring

A screw-in bowl adapter ring offers the user the ability to work with 75 or 100mm half ball heads

In the Box

  • Panhandle
  • Ruled 504PLONG Plate
  • Limited 2-Year Warranty (Additional 3 Years with Registration)
  • Bowl Adapter Ring
  • Limited 2-Year Warranty
  • Limited 3-Year Warranty Extension with Online Registration
  • Half Ball Adapter
  • Padded Carrying Case
  • Specification

      Manfrotto Nitrotech N12 Video Head

      Camera Plate
      Camera Plate Features Sliding Balance Plate
      Camera Mounting Screw 1 x 1/4"-20 Male
      1 x 3/8"-16 Male
      Tripod Platform
      Base Mount 3/8"-16 Thread
      Pan & Tilt
      Drag Control Continuous
      Drag Type Fluid
      Vertical Tilt +90° to -70°
      Panning Range 360°
      Physical
      Material Aluminum
      Load Capacity 8.8 to 26.4 lb / 4 to 12 kg
      Counter Balance Continuous
      Center of Gravity 2.2" / 55 mm
      Bubble Level 1 x Illuminated
      Base Diameter 2.95" / 75 mm
      Dimensions 5.8" / 14.7 cm
      Weight 5 lb / 2.3 kg
      Packaging Info
      Package Weight 6.95 lb
      Box Dimensions (LxWxH) 14.6 x 9.6 x 8"

      Manfrotto 536 Carbon Fiber Video Tripod

      General
      Head Mount Type 100 mm Bowl
      75/100 mm Bowl
      75 mm Bowl
      Load Capacity 55 lb / 25 kg
      Maximum Working Height 80" / 203 cm
      Minimum Working Height 10" / 26 cm
      Folded Length 28" / 71 cm
      Materials Carbon Fiber, Magnesium
