Overview

Flexibility and comprehensive control options are key to the production of the Center Mount Diva-Lite 41 LED DMX Panel from Kino Flo. The 39 x 10.5 x 6" panel uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with separate purchase of a Lumen transmitter. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control.

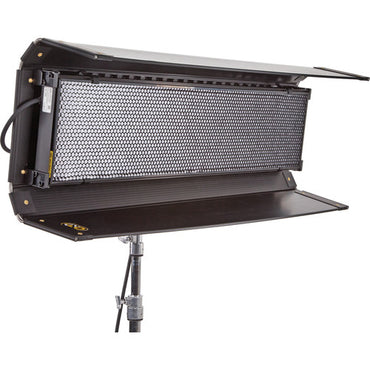

There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Diva-Lite 41 is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. A 60-degree grid is available as an option. Both 120U and 230U power cords are included for maximum flexibility. This version of the Diva-Lite 41 has a Center Mount that allows the fixture to spin 360 degrees to produce a wide range of desired angles.

Specification

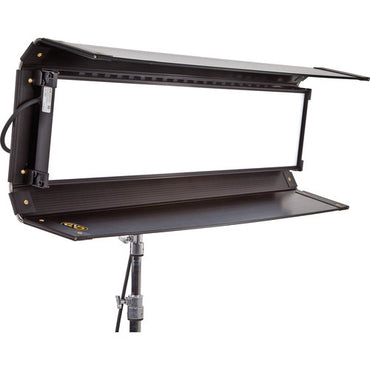

  • FreeStyle 31 LED Fixture
    Color Range With Required Controller:
    Standard Range: 2700 to 6500K
    Extended Range: 2500 to 9900K
    CRI 96
    Operating Voltage 100 to 240 VAC, 50/60 Hz (with optional controller)
    Dimming 100 to 0% (with optional controller)
    Photometrics Footcandles
    510 fc at 2.0' / 0.6 m
    161 fc at 4.0' / 1.2 m)
    75 fc at 6.0' / 1.8 m
    43 fc at 8.0' / 2.4 m
    28 fc at 10' / 3.0 m
    Lux
    7270 lux at 1.6' / 0.5 m
    2470 lux at 3.3' / 1.0 m
    1190 lux at 4.9' / 1.5 m
    683 lux at 6.5' / 2.0 m
    445 lux at 8.2' / 2.5 m
    Mount Optional 3/8" pin, Baby receiver, offset Baby receiver
    Dimensions 40.5 x 10.5 x 3.5" / 103 x 28 x 9.0 cm (with 6.5" / 16.5 cm barndoors)
    Weight 15 lb / 7.0 kg
    Packaging Info
    Box Dimensions (LxWxH) 47.0 x 18.0 x 11.0"
  • LED Controller for Kino Flo Select 20 and 30 Fixtures
    Power VAC: 100 to 240 V @ 50/60 Hz, 150 W
    VDC: 18 to 36 V, 150 W
    1.3 A @ 120 VAC, 7.0 A at 24 VDC
    Color Temperature 2700 to 6500K in White Menu
    2500 to 9900K in Color Menu
    Dimming 100 - 1%
    Dimensions 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm)
    Weight 4.5 lb (2.0 kg)
    Packaging Info
    Box Dimensions (LxWxH) 16.9 x 7.1 x 3.9"
  • KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver
    Mount 5/8" / 16 mm Baby Receiver
    Packaging Info
    Box Dimensions (LxWxH) 12.2 x 5.6 x 3.1"
  • Extension Cable 150 for Select LED System (25')
    Packaging Info
    Box Dimensions (LxWxH) 11.6 x 9.58 x 1.18"
  • Soft Case for Select 30 Fixture and Accessories (Black)
    Exterior
    Closure Type Zipper
    Carry and Transport Options Top Handle
    Material of Construction Nylon
    Exterior Dimensions (W x H x D) 31 x 7.5 x 18" / 79 x 19 x 46 cm
    Weight 6 lb / 2.7 kg
    Packaging Info
    Box Dimensions (LxWxH) 41.5 x 16.6 x 9.0"
