Sigma 24-35mm T2.2 FF Zoom Cine Lens ( EF & E Mount ) - Feet Scale

Product type: Cine Zoom Lens

Vendor: Sigma

Availability:

€4.505

Add to the wishlist

Overview

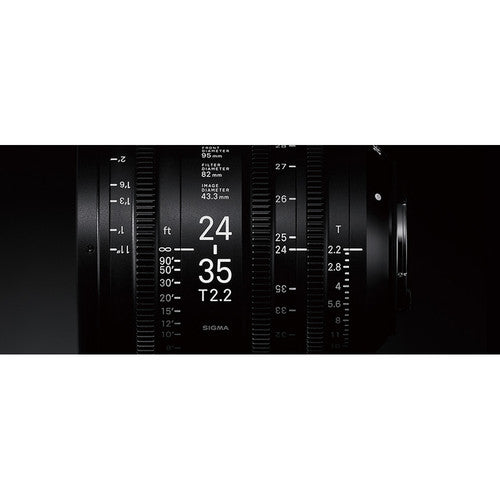

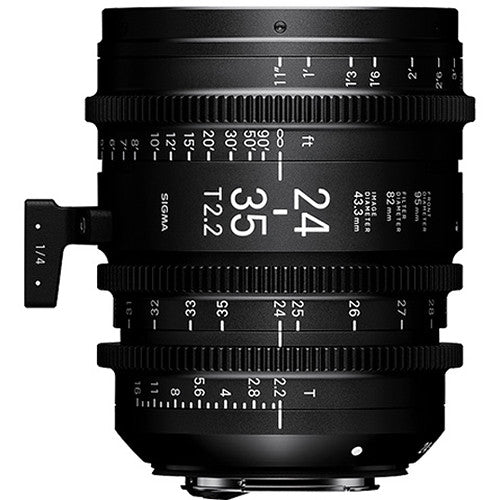

The Sigma 24-35mm T2.2 FF Zoom Lens  combines high-quality optics and a compact form factor in a cine-oriented design. This zoom provides an image circle that covers full frame-sized sensors and produces an image quality suitable for 6K-8K capture. It features a maximum T-stop of 2.2, without any aperture ramping over the zoom range. The 24-35mm T2.2 Cine FF Zoom shares common lens gear positions with the lenses in the Sigma High-Speed Zoom lineup, which makes for rapid lens changes.

The 9-bladed iris provides round out-of-focus highlights for a natural-looking bokeh. The 24-35mm T2.2 Cine FF Zoom's lens barrel features 180° of rotation from close focus to infinity, its zoom barrel rotates 160°, and its clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears, and the focus scale is marked in meters. The front of the lens barrel is 95mm in diameter and the lens has select markings done in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body, helping support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included).

If you wish to fit your Cine FF Zoom lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center.

  • Covers Full Frame Sensors
  • Canon EF Mount
  • T2.2 to 16 Aperture Range
  • Geared Focus, Iris, & Zoom Control Rings

Features

      High image performance covering full frame sensors; suitable for 8K capture

      Fast T2.2 maximum aperture aids in shooting with low light levels

      Compact, dust- and water-resistant design with a common front diameter of 95mm across the Sigma Cine lens line

      Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

      All three lens gears are industry-standard 0.8 Mod and feature a damper to eliminate any sound when you reach the end of the lens travel


Specifications



Focal Length 24 to 35mm
Lens Mount Canon EF
Format Full Frame
Image Circle 43.3 mm
Maximum T-Stop T2.2
Minimum T-Stop T16
Horizontal Angle of View Full Frame: 73.7 - 54.4°
Super35: 54.3 - 38.7°
APS-C (1.5x): 52.6 - 37.4°
Minimum Focus Distance from Image Plane 11" / 0.28 m
Iris Blades 9
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 95 mm
Filter Thread 82 mm
Focus Scales Metric
Focus Rotation 180°
Iris Rotation 60°
Zoom Rotation 160°
Electronic Communication Yes
Tripod Mounting Thread 1/4"-20
Length 4.84" / 123 mm
Weight 3.2 lb / 1440.0 g
Packaging Info
Package Weight 3.9 lb
Box Dimensions (LxWxH) 9.5 x 6.7 x 6.7"
