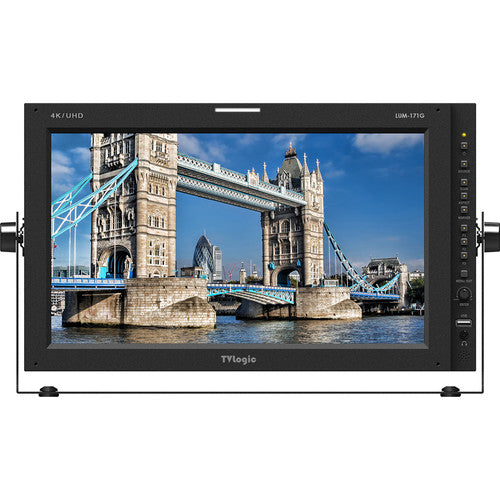

TV Logic LUM-171G (LUM171G) 17 Inch Full HD LCD Monitor with up to 12G 4K Input

Product type: Monitor

Vendor: TV-Logic

Availability:

€3,468.00

Add to the wishlist

Overview

The LUM-171G 17" Full HD 12G-SDI Single-Link Monitor from TVLogic combines a native 1920 x 1080 IPS LCD with SD/HD/UHD 4K input support for UHD 4K monitoring and field production applications. It supports 3G/6G/12G-SDI video inputs. It features a built-in internal speaker and supports stereo audio out using a phone jack. The monitor provides a wide viewing angle of 178°, contrast ratio of 1400:1, and maximum luminance of 450 cd/m².

Hybrid of Full HD panel with 4K interface
16.5" LCD screen with a native resolution of 1920 x 1080 (16:9)
10-bit 1.07B color depth and TVLogic color calibration utility
True 24p (48 Hz) driving for digital cinema
1:1 pixel mapping of 1920 x 1080 area from 3840 x 2160 video (nine selective areas)
Zoom function in 1:1 pixel mapping for focus check
3G-SDI quad link with quad and two-sample interleave modes
HDMI 2.0 single-link interface supports 4K signals up to 2160p60
Single-mode (via HDMI 2.0 port) supports signals up to 1080p60 and 1080i60, displaying one Full HD quadrant to fill the screen (zoom)
Wide viewing angles of 178°
Timecode display, focus assist, audio level meter, internal pattern, blue only, H/V delay, and marker
HDMI 2.0 support for 4K/60p
12G-SDI single-link interface
Built-in mono speaker
Matte finish panel




Features



The LUM-171G 17" Full HD 12G-SDI Single-Link Monitor from TVLogic combines a native 1920 x 1080 IPS LCD with SD/HD/UHD 4K input support for UHD 4K monitoring and field production applications. It supports 3G/6G/12G-SDI video inputs. It features a built-in internal speaker and supports stereo audio out using a phone jack. The monitor provides a wide viewing angle of 178°, contrast ratio of 1400:1, and maximum luminance of 450 cd/m².

Hybrid of Full HD panel with 4K interface
16.5" LCD screen with a native resolution of 1920 x 1080 (16:9)
10-bit 1.07B color depth and TVLogic color calibration utility
True 24p (48 Hz) driving for digital cinema
1:1 pixel mapping of 1920 x 1080 area from 3840 x 2160 video (nine selective areas)
Zoom function in 1:1 pixel mapping for focus check
3G-SDI quad link with quad and two-sample interleave modes
HDMI 2.0 single-link interface supports 4K signals up to 2160p60
Single-mode (via HDMI 2.0 port) supports signals up to 1080p60 and 1080i60, displaying one Full HD quadrant to fill the screen (zoom)
Wide viewing angles of 178°
Timecode display, focus assist, audio level meter, internal pattern, blue only, H/V delay, and marker
HDMI 2.0 support for 4K/60p
12G-SDI single-link interface
Built-in mono speaker
Matte finish panel

    Specifications

    Application UHD 4K monitoring and field production
    LCD Size 16.5" / 41.9 cm
    Video System Not specified by the manufacturer
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Pixel Pitch 0.1905 mm
    Color Depth 1.07B (10-bit)
    Viewing Angle (H x V) 178˚ / 178˚
    Brightness 450 cd/m²
    Contrast Ratio 1400:1
    Display Area 365.8 x 205.7 mm

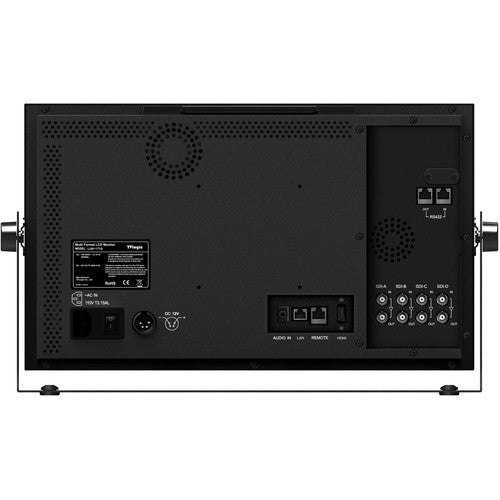

    Input and Output Connectors Inputs:
    4 x BNC (12G-SDI A/B channel input, 3G-SDI C/D channel input)
    1 x HDMI 2.0
    1 x Analog stereo

    Output:
    4 x BNC (12G-SDI A/B, 3G-SDI C/D channel, active throughout)
    1 x Analog stereo (phone jack)
    Speaker Yes, mono
    Picture Controls Timecode display
    Focus assist
    Audio level meter
    Internal pattern
    Blue only
    H/V delay
    Marker
    Remote Control No
    Front Panel Power on/off
    Source
    Scan
    Aspect
    Marker
    Function (F1 to F3)
    Menu / Exit
    Enter
    Input Signal 12G-SDI: 12 Gb/s
    6G-SDI: 6 Gb/s (2160p30)
    3G-SDI: 2.97 Gb/s
    HD-SDI: 1.485 Gb/s
    HDMI: 2160p / 1080p / 720p / 480p
    SDI Input Signal Formats SMPTE-425M-A/B:
    1080p 50/59.94/60

    SMPTE-274M:
    1080p 23.98/24/25/29.97/30
    1080PsF 23.98/24/25/29.97/30

    SMPTE-296M:
    720p 50/59.94/60

    SMPTE ST 2036-1:2009:
    3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60

    SMPTE ST 2048-2:2011:
    2048 x 1080p 23,98/24/25/29.97/30/47.95/48/50/59.94/60
    2048 x 1080PsF 23,98/24/25/29.97/30

    SMPTE ST 2081:
    3840 x 2160p 24/25/30

    SMPTE ST 2082:
    3840 x 2160p 24/25/30/50/60
    Power Requirements 24 VDC / 100 to 240 VAC (50 to 60 Hz)
    Power Consumption 48 W (maximum)
    Operating Temperature 32 to 95°F / 0 to 35°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Dimensions 16.59 x 10.39 x 2.91" / 421.5 x 264 x 74.1 mm (without stand)
    19.03 x 12.2 x 5.41" / 483.5 x 310.3 x 137.5 mm (with stand)
    Weight Not specified by the manufacturer
    Packaging Info
    Package Weight 22.0 lb
    Box Dimensions (LxWxH) 22.0 x 18.25 x 11.0"
